3001 Version 4-Aluminum Tripod

Made after 1997-01-20
Also called Manfrotto 190 ver 4

This Version has different parts from the 3001 series tripods...
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
All parts are interchangeable between Versions 3 & 4 EXCEPT the leg brace (C1) and leg release buttons (C2). The leg release buttons and braces are NOT interchangeable.

See 3001 ver 4
Manufacturers Parts List

For reference only
No 3001 ver 4 parts list is available

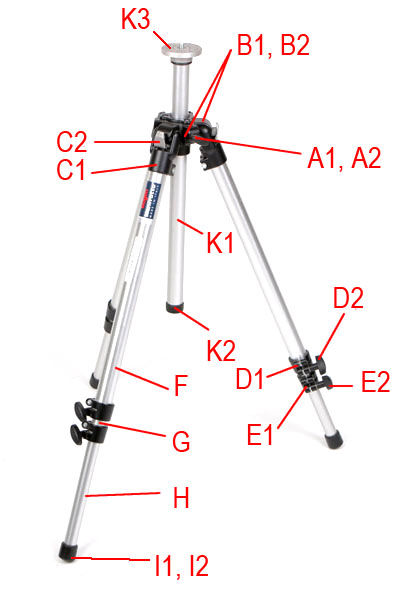

A1 Lock Knob
A1 USED Lock Knob
A2 USED Column Locking Shoe & Spring

B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
C1 USED Leg Brace Assy - one bolt
C2 USED Leg Release Button - triangular

D1 USED Upper Leg Lock
D2 Upper Leg Lock Knob
D3 Leg Lock Cap Screw
D4 Leg Lock Hex Nut

E1 Lower Leg Lock
E1 USED Lower Leg Lock
E2 Leg Lock Knob
E3 Leg Lock Cap Screw
E4 Leg Lock Hex Nut

F USED Upper Leg Tube
F1 Padded Leg Tube Cushion

G USED Middle Tube

H Lower Leg Tube
H USED Bottom Leg Tube

I1 USED Rubber Foot
I1 Rubber Foot
I2 Retracable Spike Feet Set


K1 USED Center Column
K2 Center Column Cap -Single
K2 Center Column Cap -5 Pack
K3 Grub Screw
K3 Grub Screw - 5 Pack

Bogen 381 Leg Wrap

Editor note: All versions are interchangeable
Click on the link to see the actual part picture.
