Bogen 3021 Version 3 Silver Tripod

Also called Bogen 3020, 3021 or Manfrotto 055
Made after 1999-02-09

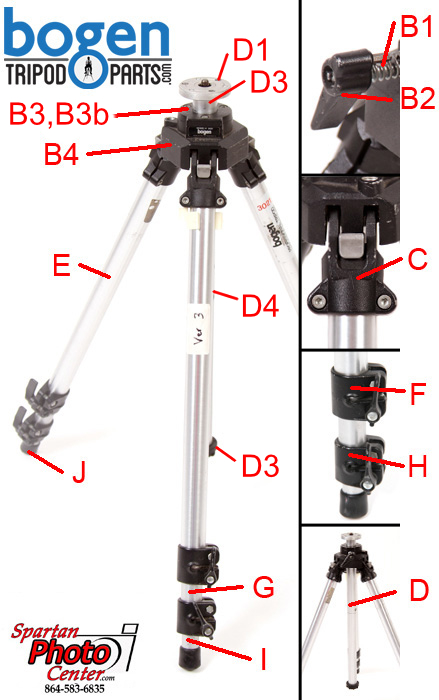

Bogen 3021 Version 3 parts. This style was any 3021 made with silver tubes, or 3221 with black tubes.
All parts supplied are for the silver tripods unless otherwise noted. USED parts are marked as USED, parts not marked as USED are new.


A (not shown)
B USED Main Casting Assembly
B1 USED Center Column Locking Shaft & Brake (Also sold with Part B assembly)
B2 Center Column Lock Knob
B2 USED Center Column Lock Knob
B3 USED Main Casting Top Cover
B3b USED Top Plate Screws
B4 USED Main Casting Body (not available separately)
B5 USED Leg Stopper
B6 Screw-in Strap Lanyard Stud

C USED Leg Brace with 2 Screws
C2 Leg Brace Release Button
C2 USED Leg Brace Release Button

D USED Long Silver Center Column
D USED Short Silver Center Column
D USED Short Silver Column Extension
D1 Center Column Grub Screw
D1 Center Column Grub Screw - 5 Pack
D2 Center Column Rubber Cushion - 2 pack
D3 USED Center Column Rubber Cap
D4 USED Center Column Joining Shim

USED Complete Leg Assembly

E USED Silver Upper Leg Tube
F USED Upper Leg Lock with Metal Levers
F1 Plastic Double Spiral Leg Lock Flip Lever
Replaces both metal and plastic levers
F2 Nut Caps (set of 5)

G USED Silver Middle Leg Tube
H USED Lower Leg Lock with Metal Levers
H1 Plastic Double Spiral Leg Lock Flip Lever
Replaces both metal and plastic levers
H2 Nut Caps (set of 5)

I USED Bottom Leg Tube

J1 Rubber Feet (set of 3)
J2 Retractable Spike Feet (set of 3)
J2 Suction Cup Feet (set of 3)

K Cable Clip & Plastic Wrench

L Strap Lanyard
L2 Tripod Strap

(not shown)

Editors Notes: The leg brace part C are NOT interchangeable with earlier models. 3021 versions 1, 2, 7 and 10 have the same manufacturer parts list, but B, C, F and H parts are slightly different in each version. Parts F and H are Single Spral Leg Flippers on this model on this model. Check the pictures against your part for best accuracy.
