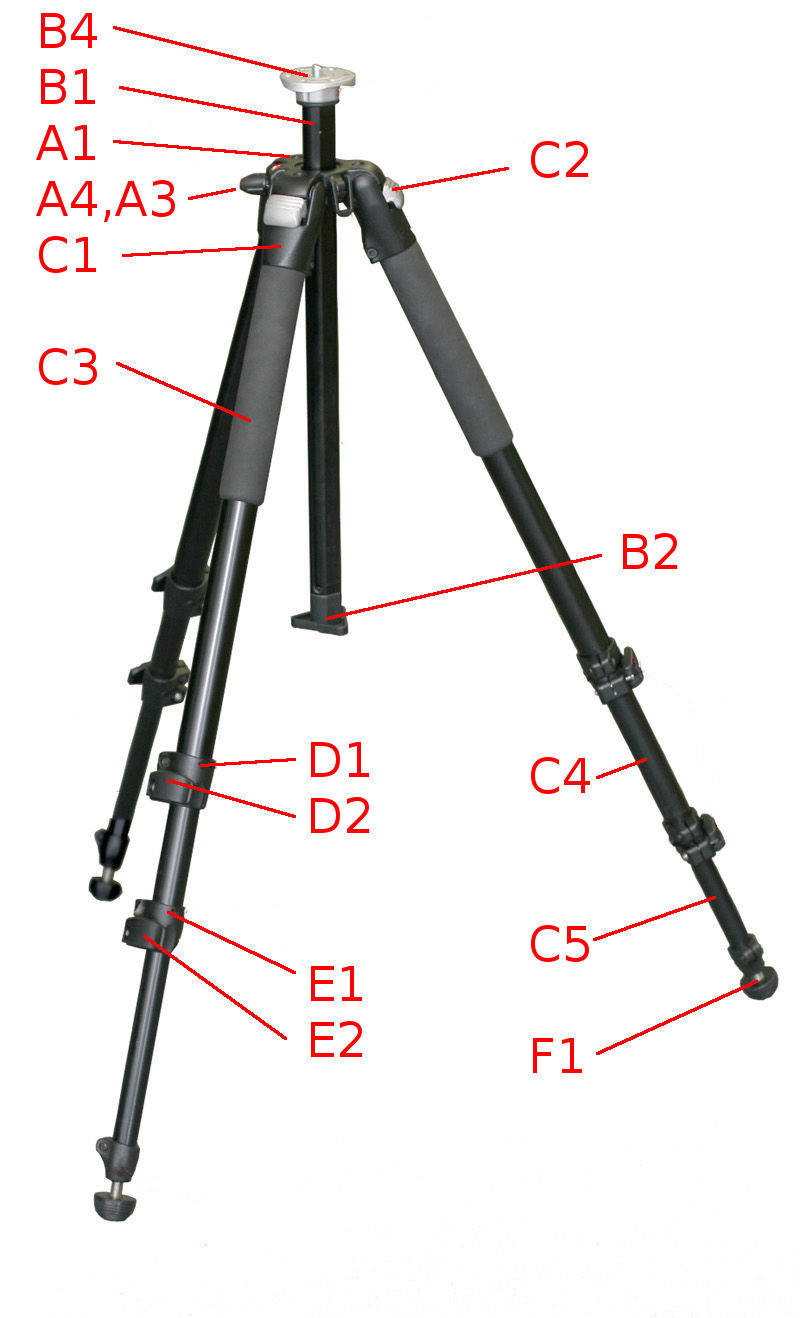

Bogen 3221WN

A1 USED Main Casting Top Plate
A2 USED Main Casting Bottom Plate
A3 USED Center Column Lock Shoe
A4 USED Center Column Lock Knob
A5 Strap Loop - Not available
A6 Repl Casting Screw - single
A6 Repl Casting Screw - 3 pack

B1 Black Center Column
B2 USED Center Column End Cap
B3 Spring for End Cap
B4 Center Column Grub Screw
B4 Center Column Grub Screw - 5 Pack

C1 Leg Brace
C1 USED Leg Brace
C2 USED Leg Release Button

C3 USED Black Upper Leg Tube
C4 Black Middle Leg Tube
C4 USED Black Middle Leg Tube
C5 USED Black Lower Leg Tube Only
Ed Note: Original Part C5 was an assembly of tube C5,
leg Lock D1 and Spike Foot F.
Original F1 is no longer available.

D1 USED Upper Leg Lock
D2 Leg Lock Snap Lever

E1 USED Lower Leg Lock
E2 Leg Lock Snap Lever

F Spike Foot
Replacement for original push inside type
F1 Rubber Foot (single)
F2 Spike Feet (single)

F2 Spike Feet Set
F2 Suction Cup Feet (set of 3)

G Cable Clip & Plastic Wrench

H Tripod Strap



Editors Notes: The main casting parts and leg braces are NOT interchangeable with later models. The Original tripod bottom leg section was an assembly. The Original foot was pushed inside the leg tube and held in by friction. The later replacements slip on over the outside of the tube. They are functionally the same.
