Bogen 804RC Version 3 - 3 Way Head

Made after 2011-02-17

USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
Parts C, I1 and J2 were changed from ver 2 to ver 3


A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaces by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B QR Cam Assembly (B1, B2, B3)
B1 QR Cam Thumb Lever
B2 QR Cam Return Spring
B3 QR Cam Pivot Screw
C Bubble Level
D Middle Handle (substitute handle)
E Top Handle
F Bottom Handle
G QR Cam Safety Release
H1 Top QR Receiver
H2 Top Pivot Screw
H3 Side Name Plate (not a stock item)
H4 Other Side Name Plate (not a stock item)
I1 Middle Joint Cover
I2 Middle Pivot Screw
I3 Middle Name Plate (not a stock item)
J Bottom Joint Cover
J1Bottom Return Spring
J2 Bottom Pivot Joint
J3 Bottom Name Plate (not a stock item)
K Base Assembly (K1, K2)
K1 Base Plate(not a stock item)
K2 Base Pivot(not a stock item)
K3 Base Name Plate(not a stock item)
L Handle Set (D, E, F)

Editor note: All versions are interchangeable

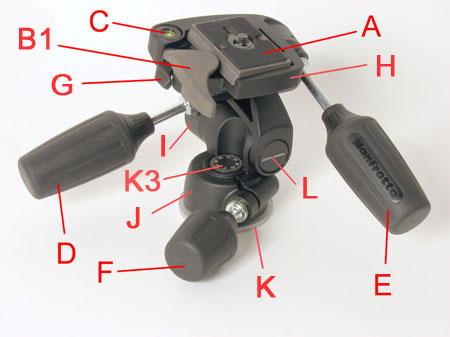

Click on the link to see the actual part picture.
